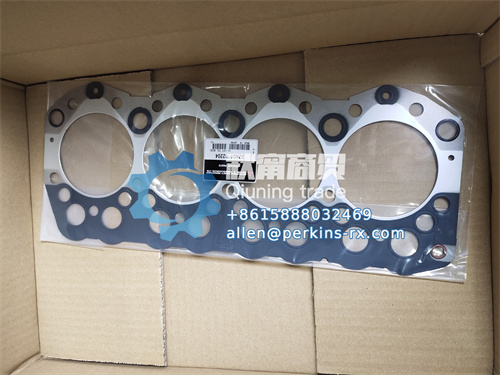

The "sealing barrier" of the engine block - Mitsubishi cylinder gasket 32A01-02204
The cylinder gasket is the "invisible diaphragm" between the engine block and the cylinder head. Although it seems thin, it has to seal high-temperature gas, coolant and engine oil simultaneously. Its performance directly determines whether the engine will have fatal faults such as liquid leakage and air leakage. Mitsubishi cylinder gasket 32A01-02204, with its original factory-level quality and precise design, has become the key to ensuring the core airtightness of the engine. Its core value lies in the dual guarantee of "precise matching" and "multi-layer protection".
As an original Mitsubishi accessory, the 32A01-02204's dimensions, bolt hole positions and sealing edges are fully compatible with the designated engine (for specific compatible models, please consult customer service). From thickness tolerance to edge curvature, all have undergone tens of thousands of tests by the original factory to ensure that the mating surfaces with the cylinder block and cylinder head are "seamless". General cylinder gaskets often have poor local fit due to dimensional deviations. However, this original factory gasket can maintain a full seal all the time when the engine is running (the cylinder block and cylinder head undergo slight deformation due to temperature changes) - this is a prerequisite for avoiding "leakage" (coolant mixing into engine oil or combustion chamber) and "leakage" (high-pressure gas leakage). Once the seal fails, In mild cases, the engine may emit white smoke and the engine oil may emulsify; in severe cases, it may cause cylinder pulling or cylinder explosion, with extremely high maintenance costs.
Its core advantage lies in the "multi-layer composite protective structure". It adopts an alternating superimposed design of metal foil and heat-resistant fibers: the middle layer is a high-temperature resistant metal core, which can withstand the impact of over 1000℃ high temperature and high-pressure gas in the combustion chamber. Both sides are covered with oil-resistant asbestos fibers to enhance the sealing performance against coolant and engine oil. The edge is embedded with a metal frame to prevent tearing caused by uneven force during installation. This design enables the cylinder gasket to not only withstand the extreme temperatures during heavy-load climbing of commercial vehicles but also resist the chemical erosion of coolant during long-term operation of construction machinery. Its service life is over 40% longer than that of ordinary cylinder gaskets.
For engines, stable cylinder gasket performance conceals "preventive value" : good sealing ensures complete combustion and no reduction in power. Anti-seepage ensures that engine oil and coolant are not contaminated, reducing the rusting of components. If the gas does not leak out, the cylinder pressure will be stable, avoiding abnormal noises and premature aging of the engine. For major overhauls or refurbishments of old engines, replacing the original factory cylinder gaskets is the key to "spending a little to save a lot" - compared with engine scrapping caused by seal failure, the investment in original factory gaskets can significantly reduce the long-term maintenance risks.
Maintenance suggestions: It is recommended to replace the engine simultaneously during major overhauls, cylinder head replacements, or when abnormal coolant/engine oil is detected. The replacement should be carried out by professional technicians who clean the mating surface between the cylinder block and the cylinder head (removing carbon deposits and old gasket residues), and tighten the bolts according to the original factory torque. After replacement, avoid high-load operation in the initial stage to ensure that the sealing surface is fully adhered.
