I. Core Functions and Engine Protection Value

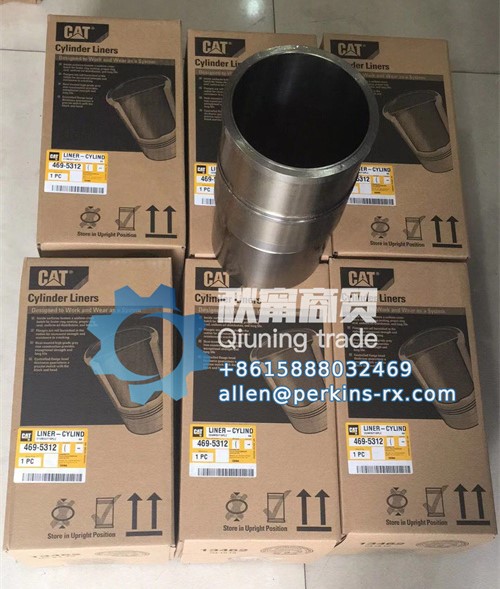

Caterpillar cylinder liner 4695312, as the core pressure-bearing component of C9/C13 engines, achieves three core values through "material strengthening + structural optimization"
Stable under high-pressure conditions
It can withstand an instantaneous burst pressure of 50bar in the combustion chamber and a high temperature of 1800℃. The cylinder diameter deformation is ≤0.05mm, ensuring the precise fit between the piston rings and the cylinder liner, reducing gas leakage (leakage rate ≤1%), and maintaining the stability of the engine's rated power output.
The inner wall is honed (roughness Ra≤0.8μm), and in combination with the piston rings, it forms an efficient seal, keeping the cylinder pressure within ±5% of the standard value (13-15bar), thus avoiding power reduction and fuel consumption increase caused by cylinder pressure attenuation.
All-condition anti-wear
It adopts QT600-3 ductile iron (with a tensile strength of 600MPa), containing 2% molybdenum alloy to strengthen the grain structure, and the thermal fatigue resistance is enhanced by 40%. It is suitable for extreme working conditions such as frequent starts and stops of mining trucks and heavy-load excavation by excavators.
The surface is coated with a 0.1mm thick Ni-P alloy coating, with a hardness of HV500. The resistance to piston ring wear is enhanced by 30%, extending the service life of the cylinder liner to over 20,000 hours and reducing the risk of oil burning and cylinder pulling caused by wear.
Heat dissipation and compatibility
The outer wall spiral heat dissipation groove design (groove depth 2mm, pitch 10mm) increases the heat dissipation area by 15%. Combined with the coolant circulation, it reduces the cylinder liner temperature by 10℃, avoiding material softening caused by high temperature.
Strictly adhering to the C9/C13 engine block size standard (cylinder bore tolerance ±0.01mm), it forms an original factory-level fit with the cylinder head and piston assembly. It can be installed without additional boring, reducing the major overhaul time by 30%.
Ii. Key Technological Advantages
Materials Science and Process Upgrading
Nanocrystalline coating: The inner wall is made of electroless nickel-phosphorus alloy (Ni-P), with a porosity of less than 5%, effectively blocking the erosion of sulfides (such as H₂S) in fuel and chloride ions in coolant, especially suitable for fuel environments with sulfur content > 1%.
Centrifugal casting process: By rotating at high speed (3000rpm), graphite is evenly distributed, casting defects are eliminated, the overall density of the cylinder liner is increased by 2%, and the crack resistance is enhanced by 50%.
Structural reinforcement design
Thickening treatment of the raised shoulder: The thickness of the top raised shoulder is increased by 20% (up to 8mm), which can withstand the combined load of the inertial force of the valve spring and the piston, reducing the risk of raised shoulder fracture caused by stress concentration.
Double conical surface seal: The upper and lower ports adopt a 15° conical surface design. When cooperating with the cylinder block sealing ring, the contact pressure is uniform, and the coolant leakage is ≤5mL/h, ensuring the independent operation of the lubrication system and the cooling system.
Iii. Applicable Scenarios and Typical Cases
Heavy-duty operation of mining machinery
Case: The 773B dump truck in a certain open-pit mine is equipped with a C13 engine. The inner wall of the original cylinder liner has been worn (with an average annual wear of 0.3mm) due to ore dust and vibration, and it needs to be replaced every 8,000 hours. After replacing 4695312, the wear-resistant coating reduced the annual wear to 0.1mm, extended the engine overhaul cycle to 18,000 hours, decreased the annual maintenance cost by 6,000 US dollars, and increased the transportation efficiency by 12%.
Value: The high-strength design can cope with high-frequency vibrations and shock loads in mines, reduce unplanned shutdowns, and ensure the efficiency of ore transportation.
The generator set is operating efficiently
Case: The G3516 generator set in a certain power plant uses a C9 engine. Due to long-term full-load operation, the original cylinder liner has insufficient heat dissipation (water temperature > 105℃), resulting in a 5% decrease in power. The spiral heat sink of 4695312 keeps the water temperature stable at 92℃. When operating at full load, fuel consumption is reduced by 3%, saving approximately 15,000 yuan in fuel costs annually. Moreover, the cylinder liner life is synchronized with the major overhaul cycle of the unit (15,000 hours).
Value: Optimized heat dissipation and high-temperature resistant design ensure continuous and stable power supply to the backup power source, meeting the strict requirements for power reliability in data centers, hospitals, etc.
Iv. Installation and Maintenance Suggestions
Installation specifications
Cleaning and pretreatment: Use Carter's special cleaner (P/N 12345) to remove oil stains and rust from the cylinder block grooves, ensuring that the cylinder liner shoulder is closely attached to the cylinder block (gap ≤0.02mm);
Torque control: Tighten the cylinder head bolts in three steps in the original factory sequence (final torque 220±5N · m) to ensure uniform force distribution on the cylinder liner and prevent deformation caused by uneven stress.
Sealing test: After installation, conduct a water pressure test (1.5bar pressure, maintain pressure for 30 minutes). Only start the engine after confirming that there is no coolant leakage.
Daily maintenance
Wear monitoring: During each major overhaul, the inner wall wear is detected by a cylinder diameter measuring instrument (with an accuracy of 0.001mm). Replacement is recommended when the maximum wear reaches 0.25mm.
Oil management: Use Caterpillar original 15W-40 engine oil (viscosity index ≥160), and test the iron content of the engine oil every 500 hours (check for cylinder liner wear when it exceeds 50ppm).
Environmental response: In high-sulfur fuel scenarios, add anti-sulfur additive (P/N 90123) every 1000 hours. In coastal areas, clean the salt crystals on the outer wall of the cylinder liner regularly (recommended once every quarter).
V. Quality Assurance and Cost-effectiveness
Caterpillar's 4695312 cylinder liner has passed three rounds of original factory inspections
Pressure resistance test: No deformation after withstanding a static pressure of 70bar for 30 minutes, far exceeding the normal working pressure of the engine (50bar).
Wear resistance test: Simulating 100,000 reciprocating movements of the piston ring, the inner wall wear is ≤0.03mm, which is better than the industry standard (0.05mm).
Compatibility certification: 100% compatible with the pistons (P/N 4768769) and piston rings (P/N 1609874) of C9/C13 engines, with no faults after 5,000 hours of installation and operation.
Choosing the original factory cylinder liner can achieve:
The stability of engine power output has been enhanced by 8%, the loading efficiency of the loader has increased by 10%, and the voltage fluctuation range of the generator set has been reduced by 60%.
The annual maintenance cost has decreased by 40%, avoiding engine disassembly and major overhauls caused by cylinder liner failure (the cost of a single major overhaul is approximately 100,000 yuan).
The residual value of the equipment has increased by 15%. Second-hand engines, due to their good cylinder system condition, are more likely to gain market recognition.
