I. The Core Value of All-Scenario Filtering and Protection

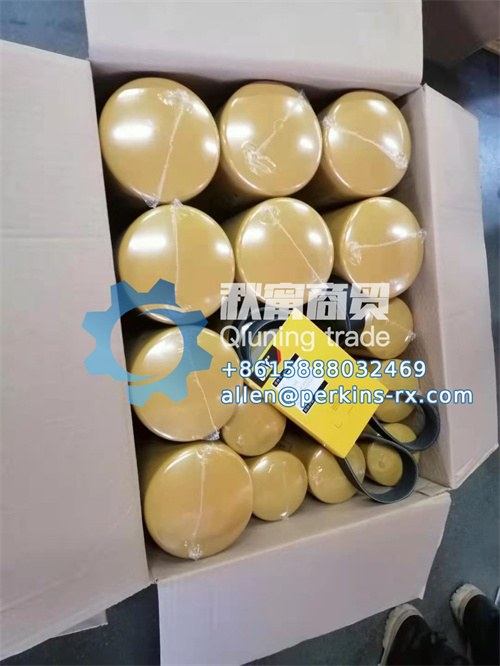

Caterpillar CAT engine parts filter elements, as core protective components for lubrication, fuel and air systems, ensure the stable operation of the engine under various working conditions through a precise filtration mechanism. Its highly efficient filtration capacity can reduce the entry of hard particles into key components by 99.9%, extending the engine overhaul cycle by more than 25%. Whether it is the 24-hour heavy load of mining equipment, the frequent start and stop of construction machinery, or the seasonal high-intensity operation of agricultural machinery, filter elements can reduce maintenance costs through stable performance and ensure the continuous and efficient operation of equipment.
Ii. Key Technological Advantages and Design Highlights
Multi-layer composite filtration technology
Adopting a dual structure of "pre-separation + fine filtration" :
Pre-separation layer: Through coarse-woven fibers or cyclone centrifugal design, large particle impurities larger than 50μm (such as metal debris and dust) are intercepted in advance, reducing the load on the main filter element and extending its service life.
Fine filter layer: The mixed medium of glass fiber and resin can capture fine particles ranging from 3 to 10μm, with a filtration efficiency 20% higher than that of ordinary filter elements, reducing the wear of precision components such as piston rings and fuel injectors from the source.
Anti-corrosion and durable design
Material and process: The filter element frame is made of stainless steel or high-strength engineering plastic, and its surface is treated with electrophoretic coating. It has passed the 48-hour salt spray test and is suitable for highly corrosive environments such as coastal areas and mines. The sealing ring is made of fluororubber material, which can withstand a wide temperature range of -40 ℃ to 120℃, preventing seal failure caused by the erosion of chemical substances in engine oil or fuel.
Structural reinforcement: The folded filter element design expands the filtration area, capable of withstanding instantaneous oil pressure impacts of over 15bar, and is compatible with precision systems such as high-pressure common rail engines, preventing filter element rupture or deformation.
Intelligent adaptation and convenient maintenance
It is equipped with a high-precision bypass valve that automatically opens when the filter element is clogged and the pressure difference exceeds the safety threshold, preventing the engine from being damaged due to interrupted fuel supply or insufficient air intake. The "quick-release" structure design, in combination with CAT-specific tools, shortens the replacement time by 50% compared to traditional filter elements. It is particularly suitable for on-site emergency maintenance and reduces downtime losses.
Iii. Applicable Scenarios and Typical Cases
The field of construction machinery
Case: During urban demolition operations, the CAT 336D excavator of a certain construction company was clogged with non-original filter elements every 200 hours due to dust pollution. After replacing the original CAT filter element, combined with the S · O · S oil analysis, the oil change cycle was extended to 600 hours, the engine abnormal noise fault was reduced by 70%, and the annual maintenance cost was lowered by 25,000 yuan.
Value: High-efficiency filtration protects the precision valve group of the hydraulic system, enhances the response speed of the equipment, and increases the efficiency of crushing operations by 15%.
The field of mining equipment
Case: In a certain open-pit coal mine, the CAT 773B mining truck's fuel filter element often fails due to sulfide corrosion and dust blockage in a high-sulfur fuel and dusty environment. After adopting the CAT sulfur-resistant fuel filter element, the frequency of fuel injector replacement decreased by 80%, the stability of engine power output improved, and the annual fuel cost was saved by approximately 50,000 yuan.
Value: The water separation technology effectively removes moisture from the fuel, prevents the pump body from rusting, and ensures the reliability of 24-hour continuous transportation operations.
The field of agriculture and power generation
Case: The CAT C4.4 engine of a certain farm drives the irrigation equipment. The low temperature in winter causes the common filter element to harden and crack. The wide temperature range adaptability of the CAT filter element ensures stable operation in an environment of -30 ℃. Combined with the original factory antifreeze, the engine start success rate is increased to 100%, and the irrigation efficiency is improved by 10%.
Value: The low-resistance design reduces the load on the intake system, improves fuel economy, and is suitable for agricultural machinery with strong seasonality and variable working conditions.
Iv. Maintenance Suggestions and Operating Guidelines
Daily inspection
Visual inspection: Before each start-up, observe whether the filter element housing is leaking oil or deformed, and whether the sealing ring is aged. Any abnormal conditions should be replaced immediately.
Pressure monitoring: Pay attention to the oil pressure and fuel pressure through the dashboard. A sudden drop may indicate that the filter element is clogged or the bypass valve is faulty.
Deep maintenance
Oil analysis: Every 1000 hours, a sample of engine oil or fuel is taken to test the contamination level and metal content, accurately determining the timing of filter element replacement to avoid over-maintenance or under-maintenance.
System cleaning: When replacing the filter element, use a CAT-specific cleaner to flush the oil passage or fuel line to remove residual impurities and prevent the new filter element from being contaminated.
Response to Extreme environments
Dusty environment: Install a CAT air pre-filter to form a dual protection of "pre-filtration + fine filtration", reducing the entry of dust into the engine.
High-sulfur fuel: Select CAT sulfur-resistant fuel filter elements and use original fuel additives in combination to neutralize sulfides and extend the service life of fuel injectors.
V. Quality Assurance and Purchasing Guide
Caterpillar strictly adheres to the ISO 16889 international filtration standard. Each batch of filter elements has passed:
Burst pressure test: No rupture under 5 times the rated pressure, ensuring the safety of the high-pressure system.
Sealing performance test: Maintain pressure at 1.5bar for 30 minutes, with leakage ≤0.05mL/min;
Compatibility certification: Fully compatible with the entire range of CAT engine oils, fuels and engine components, avoiding performance degradation caused by chemical reactions or mechanical incompatibility.
Users can enter the engine model to query the compatible filter element through Caterpillar's official Parts platform (Cat Parts Store), and recognize the "CAT Genuine Parts" laser anti-counterfeiting label to ensure the genuine product channel.
Vi. Cost-benefit Analysis
Choosing CAT engine parts filter elements can achieve:
Efficiency improvement: Clean oil and intake system make the engine power output more stable, and the equipment operation efficiency increases by 12%.
Reduced maintenance costs: The long-life design reduces the frequency of replacement. Combined with preventive maintenance, the annual filter element procurement cost can be reduced by 30%.
Equipment preservation value: System-level filtration protection extends the lifespan of engine core components, increasing the residual value of second-hand equipment by 10% to 15%.
Vii. Contact Information
If you need a list of compatible models, maintenance schedules or bulk purchase quotations, please feel free to contact us through the following methods: Service Supply and Sales Center of Ningbo Qiuning Trading Co., LTD
Our company offers a wide range of engine assemblies and accessories of different brands and models
If interested, you can directly add my contact information: +86 15888032469
Or email me at allen@perkins-rx.com
Note the model or serial number for faster processing and more favorable prices
We offer global logistics and distribution services, providing genuine products. We support online ordering and ensure a response to customer demands within 72 hours.
