I. Core Functions and Overhaul Value

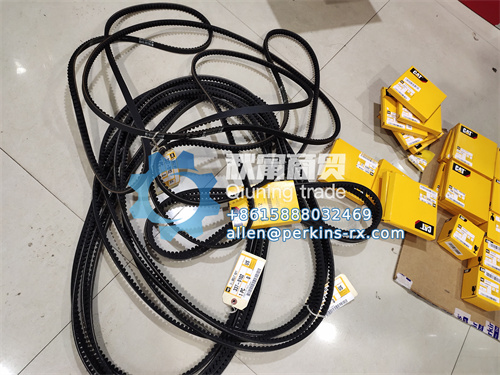

The Caterpillar CAT engine overhaul belt, as a core component for power transmission, is specially designed for engine overhaul scenarios. It ensures the coordinated operation of accessories such as crankshafts, generators, and water pumps through precise transmission. Its high-strength structure can withstand the high-load output of the engine after major overhauls, avoiding chain faults such as water pump stoppage and generator power failure caused by belt failure, and ensuring the reliability and durability of the equipment after major overhauls. In the major overhauls of engines for mining machinery and construction machinery, this belt is a crucial link in restoring the full charging performance of the equipment.
Ii. Key Technological Advantages
High-strength composite material
Skeleton material: The core layer is woven with Aramid Fiber, with a tensile strength of up to 2500 mpa, which is three times that of ordinary polyester fiber. It can withstand an instantaneous tensile force of more than 2 tons, significantly reducing the risk of tensile deformation during high-load operation after major overhauls.
Base rubber: Oil-resistant Neoprene rubber with an anti-ozone formula is added to delay the erosion of ultraviolet rays and engine oil. Its service life is 30% longer than that of ordinary belts and is suitable for the high-temperature and oily environment in the engine compartment.
Precise tooth profile and tension design
Tooth Profile optimization: The adoption of CAT's patented Radius Tooth Profile increases the contact area by 15% when meshing with the pulley, raising the transmission efficiency to over 98% and reducing power loss and noise caused by slippage.
Automatic tensioning adaptation: When used in conjunction with the original CAT tensioner, it can dynamically compensate for the length changes of the belt under cold and hot conditions, ensuring stable tension (deviation ≤±5N) when the speed fluctuates after major overhauls.
Wide operating condition adaptability
Passing the -40 ℃ low-temperature flexibility test and the 150℃ high-temperature anti-softening test, it maintains rubber elasticity during extremely cold starts, inhibits material aging when the engine overheated, and avoids belt breakage or slippage caused by environmental temperature fluctuations after major overhauls.
Iii. Applicable scenarios and Compatibility with major overhauls
Major overhaul of construction machinery
Case: When a construction company carried out a major overhaul of the C9 engine of the CAT 336D excavator, they selected the original factory overhaul belt and replaced it with a tensioner. After the equipment was restarted, the noise of the transmission system decreased by 20%, and there were no abnormalities during continuous operation for 500 hours. The reliability increased by 40% during the overhaul cycle.
Compatible models: Covering the major engine overhauls of 320D and 349D excavators, 950H loaders, and D6/D9 bulldozers, precisely matching the transmission ratios of crankshafts and accessory gear trains.
Maintenance of mining equipment
Case: A certain open-pit coal mine carried out a major overhaul of the C15 engine of the CAT 773B mining truck. After using this belt, it can withstand 24-hour continuous heavy-load transportation. The belt's lifespan reaches 12,000 hours, which is 5,000 hours longer than that of non-original parts, reducing the frequency of replacement during high-altitude operations.
Special advantages: Anti-dust design, the tooth surface groove structure can quickly discharge the entering mineral powder, avoiding tooth surface wear caused by particle accumulation.
Overhaul of the generator set
Compatible scenarios: Compatible with major overhauls of C13 and C18 generator sets, ensuring stable belt tension when the backup power supply starts, avoiding fluctuations in generator speed caused by belt looseness, and guaranteeing power continuity in scenarios such as hospitals and data centers.
Iv. Suggestions for Major Overhaul, Installation and Maintenance
Installation specifications
Tension calibration: Use a CAT-specific tensiometer (such as 1U-6267) for detection. It is recommended that the tension be 800-1000N (adjust according to the engine model). If it is too loose, it may cause slippage; if it is too tight, it will increase the load on the bearing.
Alignment check: Ensure that the flatness deviation of the pulley is ≤0.5mm. Use a laser alignment tool (such as CAT 1R-0750) for calibration to avoid early damage caused by uneven wear.
Daily maintenance
Visual inspection: Before each equipment start-up, observe whether there are cracks, delamination or abnormal wear on the surface of the belt. When the wear depth of the tooth surface exceeds 1mm, it needs to be replaced.
Temperature monitoring: The operating temperature of the belt is detected by an infrared thermometer. If it continuously exceeds 130℃, faults in the heat dissipation system or the tensioner need to be investigated.
Response to extreme working conditions
Dusty environment: During major overhauls, install belt guards (such as CAT 22-3456) to reduce the entry of dust into the tooth surface.
In high-humidity scenarios: Regularly apply CAT-specific rubber protectants (such as 1R-0739) to delay the aging of sealing rings and prevent belt slippage.
V. Quality Assurance and Compatibility for Major Overhauls
Caterpillar strictly implements the ISO/TS 16949 quality management system, and each batch of belts passes:
Dynamic fatigue test: Simulate 100,000 cycles of load (0-2000N), without fracture or permanent deformation;
Elongation control: The elongation under 24-hour continuous load is ≤1.5%, ensuring a stable transmission ratio after major overhauls.
Original factory compatibility certification: It is fully matched with the tooth profile and circumference of CAT engine accessory gear trains (such as water pumps and air compressors), avoiding the compatibility risks of non-original factory parts.
Users can search for compatible models through the official Cat Overhaul Parts Guide of Caterpillar, identify the anti-counterfeiting label "CAT Genuine Parts", and ensure the quality of overhaul.
Vi. Cost-benefit Analysis
Choosing CAT for a major overhaul of engine belts can achieve:
Improved overhaul efficiency: Original factory adaptation reduces installation and commissioning time, shortens the overhaul cycle by 15%, and enables equipment to resume operation 24 hours earlier.
Reduced maintenance costs: The long-life design reduces the frequency of replacement. Combined with preventive major overhauls, it saves 30% of the annual maintenance costs compared to non-original parts.
Equipment reliability guarantee: Prevent accessory damage caused by belt breakage, reduce the risk of secondary failure after major overhauls, and enhance customers' trust in major overhaul services.
