I. Core Functions and Application Value

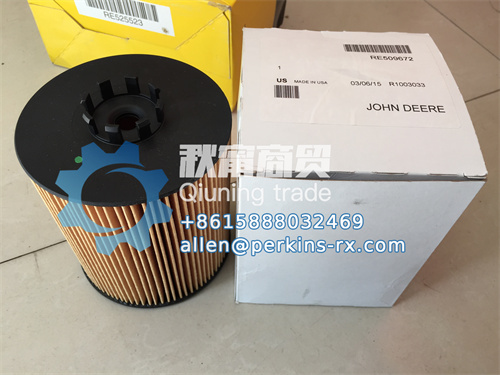

John Deere RE509672 oil filter element, as a core component of the engine lubrication system, ensures the cleanliness of the oil through a precise filtration mechanism, which directly affects the power output and service life of the equipment. Its Superlock pleated media technology provides micron-level filtration while maintaining high flow rates, effectively reducing internal engine wear. In agricultural scenarios, the cartridge can ensure the lubrication stability of harvesters during continuous operation; in the field of construction machinery, it can cope with the extreme working conditions of mining loaders in high dust environments.
Key Technical Advantages
High-efficiency Filtration and Dust Containment Design
Adopting glass fiber and synthetic resin mixed media with 86 uniform pleated structures, the filtration area is 30% higher than that of traditional cartridges, and it can capture 99.98% of particles of more than 3 microns. This design not only extends the life of the cartridge, but also reduces oil pressure fluctuations caused by contaminant clogging, reducing engine power loss.
Durability and Corrosion Resistance
Metal Reinforcement: The inner tube of the cartridge has a convoluted helix design with a metal lining, which can withstand transient oil pressure impacts of more than 15 bar;
Corrosion Resistant Coating: Polyurethane backing gaskets and rubber seals are effective in resisting sulfide attack from diesel fuel and preventing oil leakage caused by sealing failures.
Intelligent adaptation and easy installation
Built-in high-precision bypass valve automatically opens the emergency channel when the filter element is clogged, ensuring that the engine can still be lubricated under extreme conditions. The “Drop-in” cartridge design, which is suitable for John Deere mainstream equipment, can be quickly replaced without specialized tools, significantly reducing the difficulty of maintenance.
Applicable Scenarios and Typical Cases
RE509672 cartridge is widely used in the following fields:
Agricultural Machinery: In S660 combine harvester, its high efficiency filtration capacity can reduce the damage of straw debris to the engine during grain harvesting, and prolong the engine overhaul cycle by more than 20%;
Construction Machinery: When 300G loader operates in the mines, the corrosion-resistant feature of the cartridge can cope with the high sulfur content in diesel fuel, and reduce the breakdown caused by oil contamination. Engineering machinery: 300G loader in mining operations, the anti-corrosion characteristics of the filter element can deal with the problem of high sulfur content of diesel fuel, reducing the frequency of failures caused by oil pollution;
Power security: PowerTech generator sets use the filter element, the oil replacement cycle from 250 hours to 500 hours, significantly reducing the maintenance costs of the backup power system.
Maintenance and Operation Recommendations
Installation Specifications
Clean the surface of the filter element holder when replacing it to avoid residual impurities from entering the oil circuit;
Before installing a new filter element, apply a small amount of oil to the sealing ring to ensure sealing, and tighten the end cap bolts according to a torque of 15Nm.
Preventive Maintenance
Daily Inspection: Observe the oil pressure gauge before each start-up of the unit, abnormal fluctuations may indicate a clogged cartridge;
In-depth Maintenance: Oil analysis is recommended at every two change intervals (approx. 400 hours), using a spectrometer to detect the concentration of metal wear particles.
Extreme Environment Response
In dusty or high humidity environments, it can be used in conjunction with John Deere original air filters (such as D68479) to form a dual protection system and reduce the risk of particles entering the lubrication system.
Quality Assurance and Selection Guide
John Deere strictly implements ISO 16889:2018 filtration efficiency testing standards, and each batch of RE509672 filter element passes:
Pulse durability test: simulating 100,000 oil pressure fluctuations, no rupture or deformation of the filter element;
Sealability test: holding pressure for 30 minutes at 1bar pressure, with leakage of ≤0.1mL/min;
Compatibility verification: with the full range of John Deere oil (e.g. D68479), it can be used to form a double protection system to reduce the risk of particles entering the lubrication system. Compatibility verification: chemically compatible with the full range of John Deere oils (e.g. DEO Premium Plus).
Users can verify the authenticity of the products through the official John Deere Parts Inquiry System (John Deere Parts), and give priority to the genuine products with laser anti-counterfeiting labels to avoid abnormal engine wear caused by non-authorized cartridges.
Cost-benefit Analysis
The selection of RE509672 filter element can achieve:
Efficiency Improvement: Optimized filtration effect reduces engine friction loss by 12%, and improves fuel economy by 3%-5%;
Reduced Maintenance Costs: Long-life design reduces the frequency of replacement, and combining with preventive maintenance, it can reduce the annual maintenance costs by 25%;
Value Preservation: Stable lubrication system prolongs the service life of the engine, and increases the residual value of the second-hand equipment by 8%-10%. Equipment value preservation: stable lubrication system extends engine life, increasing the residual value of used equipment by 8%-10%.
