01 Product Overview, Key Component Connecting the Piston and Connecting Rod
The piston pin is an essential component in construction machinery engines, fulfilling the crucial task of connecting the piston and connecting rod.

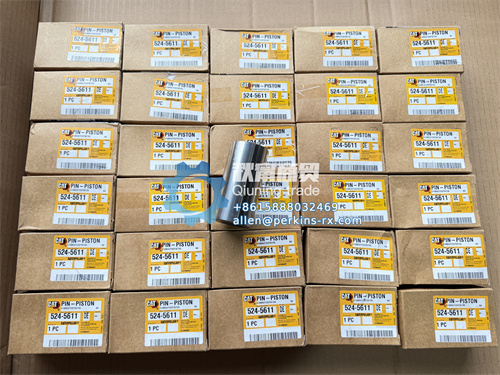

The Caterpillar 524-5611 diameter piston pin, with its precision manufacturing process and superior material selection, ensures stable performance in high-temperature, high-pressure operating environments.
Designed specifically for Caterpillar equipment, this piston offers excellent wear resistance and fatigue resistance, meeting the demands of a variety of demanding operating conditions.
As a core connecting component in equipment operation, its quality directly impacts the overall engine efficiency and service life.
02 Product Function, Power Transmission and Load Bearing
The piston pin acts as a power transmission bridge within the engine. Its primary function is to transmit the gas force exerted on the piston to the connecting rod, or to enable the connecting rod's small end to drive the piston.
This component is subject to significant cyclical impact loads under high-temperature conditions. Furthermore, due to the narrow oscillation angle of the piston pin within the pinhole, it is difficult to form a lubricating film, resulting in poor lubrication conditions.
It is precisely this operating environment that demands piston pins possess sufficient rigidity, strength, and wear resistance, while maintaining minimal weight.
The Caterpillar 524-5611 diameter piston pin is designed precisely to meet these demanding requirements, effectively meeting the diverse challenges of engine operation.
03 Core Features, Superior Design to Meet Professional Needs
Reliable Connection Performance: The 524-5611 piston pin features an optimized structural design, ensuring a tight fit with the piston and connecting rod, providing stable power transmission.
Excellent Wear Resistance: A special heat treatment process imparts excellent wear resistance to the surface, enabling it to withstand long-term, high-load operation and extending replacement intervals.
Wide Applicability: This piston pin is compatible with a wide range of Caterpillar equipment, including common models such as the Caterpillar 320, 330, and 336, meeting the maintenance needs of diverse equipment.
Precise Dimensional Specifications: Manufactured to strict specifications, this ensures a perfect fit with related components, reducing excessive wear and equipment failures caused by dimensional deviations.
04 Installation Guide, Professional Assembly Extends Service Life
Proper installation is essential for optimal piston pin performance. Professional procedures are required when installing the piston pin:
Clearance Check: Before installation, confirm that the clearance between the piston pin and the pin boss hole meets the standard. Generally, at room temperature, the engine requires a slight interference fit, and when the piston is at normal operating temperature, a slight clearance remains.
Professional Tool Use: Use appropriate installation tools and equipment to avoid direct impact that may damage or deform the component surface.
Assembly Quality Verification: After installation, check the fit of the piston pin in the pin boss hole. Proper fit requires the piston pin to rotate in the pin boss hole when the piston is at normal operating temperature.
Following professional installation procedures not only ensures the proper function of the piston pin but also significantly extends the service life of the entire piston assembly.
contact Ningbo Qiuning Trading Co., Ltd.:
Email: allen@perkins-rx.com
Website: http://www.cnqn.net/
WhatsApp/WeChat: +8615888032469
05 Purchasing Channels: Qualified Suppliers Guarantee Product Quality
Ningbo Qiuning Trading Co., Ltd., a professional supplier of construction machinery parts, is committed to providing customers with high-quality Caterpillar-compatible parts.
Our 524-5611 diameter piston pins undergo rigorous quality control to ensure reliable performance.
You can purchase this product through our official website, partner e-commerce platforms, or by contacting our sales team directly.
We have established a comprehensive supply chain system to promptly respond to your purchasing needs, reduce equipment waiting times, and improve maintenance efficiency.
06 Usage Recommendations: Professional Maintenance Increases Lifespan
Proper use and maintenance can significantly extend the lifespan of your piston pin:
Regular Inspection: In conjunction with regular equipment maintenance, inspect the wear of the piston pin and related components to identify potential problems.
Ensure Lubrication: Ensure the proper functioning of the engine's lubrication system. Although it may be difficult to form an oil film around the piston pin, a good overall lubrication environment will still improve its operating conditions.
Professional Repair: If severe wear, cracks, or surface peeling are observed on the piston pin, it should be replaced promptly. Wear should be measured using specialized tools at three locations: at both ends and in the center.
Complementary Replacement: When replacing a piston pin, it is recommended to also inspect the piston and connecting rod for wear and, if necessary, replace them together to ensure optimal coordination of the entire assembly.
Following these usage recommendations will not only ensure the proper function of your piston pin, but also significantly extend the life of the entire piston assembly.
Choosing the right piston pin is more than just a one-time repair; it's a guarantee for the long-term, stable operation of your equipment. Ningbo Qiuning Trading Co., Ltd. is committed to being your reliable partner, providing high-quality spare parts for your equipment and ensuring the smooth progress of your project.
