I. Product Positioning and Core Functions

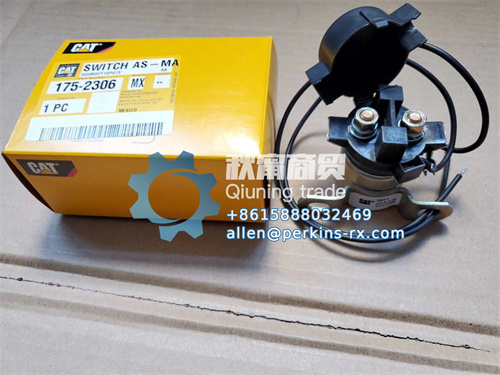

The Caterpillar model 175-2306 relay switch is a core control component specially designed for construction machinery, mainly used for circuit on-off control, overload protection and signal transmission. As a key node of the electrical system of the equipment, its stability directly affects the operational safety and efficiency of the entire machine. The product features a high-strength engineering plastic casing and silver-plated contact points, enabling stable operation in extreme environments ranging from -40 °C to 85° C. It is suitable for the complex working conditions of equipment such as excavators and loaders.
Second, match the applicable scenarios and devices
Mainstream compatible models
Caterpillar excavator series (such as 320D, 336D)
Earthmoving machinery such as loaders and bulldozers
Generator set start-up control system
Industrial equipment circuit protection module
Functional scenarios
Engine start/stop control
The pressure signal of the hydraulic system triggers
Switches for auxiliary circuits such as lights and horns
Emergency shutdown protection (EMO) circuit
Iii. Core Advantages and Design Features
Reliability guarantee
Original factory certified quality: Passed Caterpillar's strict IP67 water and dust resistance test, capable of resisting the intrusion of mud, water and sand
The contact life exceeds 100,000 times. It is made of silver alloy to reduce contact resistance and minimize arc loss
It is equipped with an overload protection device and can withstand the impact of instantaneous peak current
Humanized design
Standardized interface design supports quick plugging and unplugging for replacement, reducing downtime
Dual-color LED status indicator lights (green for operation/red for fault) facilitate real-time diagnosis
The anti-vibration structure design can adapt to the high-frequency vibration working conditions of the equipment
Iv. Maintenance Guide
Key points for daily inspection
Contact cleaning: Wipe the contact surface with anhydrous alcohol every 250 hours to remove the oxide layer and oil stains and avoid poor contact
Connection and fastening: Check the torque of the wire harness connector (5-8N · m is recommended) to prevent loosening caused by vibration
Status monitoring: Observe the status of the indicator light. If any abnormality occurs, immediately check for circuit faults
Preventive maintenance cycle
Replace the dust-proof sealing ring every 500 hours to prevent moisture from entering
Contact pressure tests should be conducted annually to ensure that the contact force is ≥1.5N
It is recommended to check the mechanical travel of the switch simultaneously during the major warranty period of the equipment (standard value: 3-5mm).
Troubleshooting skills
Use a multimeter to test the on-off resistance of the contacts (normal ≤50mΩ)
Simulated load test: Apply the rated current (such as 30A) for 10 minutes and observe the temperature rise (≤40K)
Avoid using sandpaper to polish the contacts. It is recommended to use a dedicated contact repair tool
V. Application Cases and Upgrade Plans
Typical application: A certain mining fleet reduced the circuit failure rate from 8 times per month to 0.5 times by replacing the 175-2306 switches in batches, and lowered the annual maintenance cost by 40%
Performance upgrade: For high-humidity environments, custom models with moisture-proof heating elements are available (reservations must be made three weeks in advance).
Economic solution: Carter remanufactured switches (with the model suffix "R") have the same performance as new products, at a 30% lower price, and enjoy the same warranty
Vi. Summary
The Caterpillar 175-2306 relay switch is the "safety valve" of the electrical system in construction machinery, and its performance directly affects the equipment's availability and operational safety. It is recommended to purchase genuine products through official channels. Combined with regular maintenance and professional inspection, the service life can be extended to over 8,000 hours. For personalized solutions or real-time quotations, please contact Carter's authorized service network for support.
